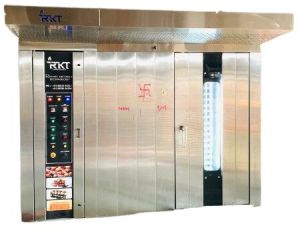

Rotary Rack Oven
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Country of Origin | India |
| Type | Rotary Rack Ovens |
| Material | Mild Steel, Stainless Steel |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Application
Roasting And Heating
Weight
0-500kg, 1000-1500kg, 2000kg
Color
Light White, Silver, As Per Requirement
Feature
Auto Cut, Energy Saving Certified, Fast Heating, Long Life, Low Maintenance, Rust Resistance, Shocked Proof
Voltage
110V, 220V, 380V, 440V
Condition
New
Frequency
50Hz, 60Hz
Power
1-5kw
Driven Type
Electric
Temperature
100-200°C, 200-400°C, 50-100°C
Warrantu
1yr
Automation Grade
Automatic
Brand Name
RKT
Gas fired / diesel fired/wooden fired
Technical Data
| Model | Dimensions ( WXDXH) | Connected Load | Weight | Min Dimensions to Take in (HXW) | |
| RKTRO1 | 1422 x 1067 x 2236 mm (56"x42"x88") | 1.8 KW III Ph or I Ph | 800 Kg. | 2337 x 1016 mm (92"x40") | |
| RKTRO2 | 1321 x 1829 x 2236 mm (52"x72"x88") | 1.8 KW III Ph or I Ph | 1200 Kg. | 2337 x 1118 mm (92"x44") | |
| RKTRO3 | 1778 x 1422 x 2438 mm (70"x56"x96") | 3.0Kw/4.4 HP (420 vAC,52 Hz) | 1600 Kg. | 2591 x 863 mm (102"x34") | |
| RKTRO4 | 1981 x 1626 x 2438 mm (78"x64"x96") | 3.0Kw/4.4 HP (420 vAC,52 Hz) | 1800 Kg. | 2591 x 914 mm (102"x36") | |
| RKTRO5 | 2184 x 2174 x 2438 mm (86"x70"x96") | 3.5Kw/4.4 HP (420 vAC,52 Hz) | 2200 Kg. | 2591 x 965 mm (102"x38") | |
| RKTRO6 | 2997 x 2184 x 2838 mm (118"x86"x96") | 6.8Kw/8.6 HP (420 vAC,52 Hz) | 2700 Kg. | 2591 x 1321 mm (102"x52") | |
| RKTRO7 | 3099 x 2286 x 2438 mm (122"x90"x96") | 4.8Kw/6.5 HP (420 vAC,52 Hz) | 3200 Kg. | 2591 x 1372 mm (102"x54") | |
| RKTRO8 | 3658 x2692 x 2438 mm (144"x106"x96") | 6.5Kw/8.9 HP (420 vAC,52 Hz) | 4200 Kg. | 2591 x 1473 mm (102"x58") |
Technical Data 02
| Model | Tray Size | Biscuits | Sponge Cake | Buns 45g | Bread 400g | Dry Rusks | Kharis |
| RKTRO1 | 450 x450 mm | 9-10 Kgs. | 19 Kg | 229 Nos. | 80 Loaves | 10 Kgs. | 9 Kgs. |
| 1 Trolley | (18" x 18") | 14 Trays | 10 Shelves | 14 Shelves | 10 Shelves | 14 Trays | 14 Trays |
| RKTRO2 | 450 x 700 mm | 16-18 Kgs. | 38 Kg | 340 Nos. | 120 Loaves | 14-15 Kgs. | 11 Kgs. |
| 1 Trolley | (18" x 27") | 14 Kgs. | 10 Shelves | 14 Shelves | 10 Shelves | 14 Kgs. | 14 Kgs. |
| RKTRO3 | 450 x 700 mm | 22 Kgs. | 53 Kg | 435 Nos. | 168 Loaves | 20-22 Kgs. | 14 Kgs. |
| 1 Trolley | (18" x 27") | 18 Trays | 14 Shelves | 18 Shelves | 14 Shelves | 18 Trays | 18 Trays |
| RKTRO4 | 600 x 800 mm | 30 Kgs. | 75 Kg | 635 Nos. | 210 Loaves | 28-30 Kgs. | 19 Kgs. |
| 1 Trolley | (23" x 32") | 18 Trays | 14 Shelves | 18 Shelves | 14 Shelves | 18 Trays | 18 Trays |
| RKTRO5 | 450 x 700 mm | 42 Kgs. | 106 Kg | 870 Nos. | 336 Loaves | 38 Kgs. | 25 Kgs. |
| 2 Trolley | (18" x 27") | 36 Trays | 28 Shelves | 36 Shelves | 14 Shelves | 36 Trays | 36 Trays |
| RKTRO6 | 600 x 800 mm | 60 Kgs. | 150 Kg | 1265 Nos. | 420 Loaves | 58 Kgs. | 36 Kgs. |
| 2 Trolley | (23" x 32") | 36 Trays | 28 Shelves | 36 Shelves | 14 Shelves | 36 Trays | 36 Trays |
| RKTRO7 | 450 x 700 mm | 85 Kgs. | 212 Kg | 1732 Nos. | 672 Loaves | 74 Kgs. | 50 Kgs. |
| 4 Trolley | (18" x 27") | 72 Trays | 56 Shelves | 72 Shelves | 14 Shelves | 72 Trays | 72 Trays |
| RKTRO8 | 600 x 800 mm | 120 Kgs. | 300 Kg | 2525 Nos. | 840 Loaves | 120 Kgs. | 70 Kgs. |
| 4 Trolley | (23" x 32") | 72 Trays | 56 Shelves | 72 Shelves | 14 Shelves | 72 Trays | 72 Trays |
